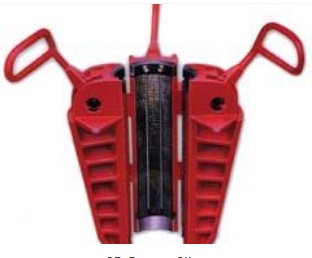

SD Rotary Slips

SD Rotary Slips　Introduce :

　　The slips are designed and manufactured in API Spec 7K and SY/T 5049《Slips for well drilling》. It is suitable to handle the drill rods during the oil well drilling operations for the exploration of petroleum and natural gases ，It is an essential tool for coupling and uncoupling .

Main technical parameters:

Model			Pipe Size		Dies		Weight (kg)
Model			in	mm	No.	Qty	Weight (kg)
SDS-S (Super short)	3½	2⅜	2⅜	60.3	2160	18	38
		2⅞	2⅞	73	2161	18	37
		3½	3½	88.9	2162	18	36
SDS (Short)	3½	2⅜	2⅜	60.3	2160	24	71
		2⅞	2⅞	73	2161	24	68
		3½	3½	88.9	2162	24	66
	4½	3½	3½	88.9	2163	36	83
		4	4	101.6	2164	36	80
		4½	4½	114.3	2165	36	76
SDML (Middle)	3½	2⅜	2⅜	60.3	2160	30	98
		2⅞	2⅞	73	2161	30	95
		3½	3½	88.9	2162	30	92
	4½	3½	3½	88.9	2163	45	105
		4	4	101.6	2164	45	101
		4½	4½	114.3	2165	45	96
	5	4	4	101.6	2168	45	103.5
		4½	4½	114.3	2166	45	100
		5	5	127	2167	45	95
	5½	4½	4½	114.3	2168	45	101
		5	5	127	2169	45	97
		5½	5½	139.7	2170	45	92
SDXL (Long type)	4½	3½	3½	88.9	2163	54	118
		4	4	101.6	2164	54	114
		4½	4½	114.3	2165	54	108
	5	4	4	101.6	2168	54	116
		4½	4½	114.3	2166	54	112
		5	5	127	2167	54	106
	5½	4½	4½	114.3	2168	54	116
		5	5	127	2169	54	111
		5½	5½	139.7	2170	54	105
